Scoreboards > Permanent Hockey Scoreboards



Click on a model below to view:



Model #9795 Indoor Scoreboard With Penalty and Shots on Goal

Model 9795 Indoor Scoreboard With Penalty and Shots on Goal

Model #9795
  Display Size: 21' x 6'6" x 3"
Weight: 370 lbs.

Call 1-800-325-4904 for pricing.

INCLUDES:
  • Control console with LCD readout
  • 0-99 home/guest player number
  • Two player penalty panels
  • 99:59 penalty time
  • Wall junction box
  • 0-99 home/guest score keeping
  • Mounting brackets
  • 99:59.9 up/ down timing
  • Period indicator
  • 0-99 shots on goal
Intermission mode- up to seven penalty times stored and automatically displayed
SCOREBOARD FEATURES:
  • Microprocessor control
  • Quartz crystal solid-state timing
  • 1/10 second timing last minute on scoreboard
  • LED advanced technology - lamp display not required
  • Brilliant red 12" and 16" digit displays
  • Visibility up to 800 feet
  • 200,000 hour multi LED per segment
  • Automatic and manual LOUD horn
CONTROL CONSOLE FEATURES:
  • Stainless steel console
  • Audible beep console entry
  • LCD display prompts user entry on console
  • LCD display shows time 99:59.9, score and shot clock time
  • 110-volt AC power not required at console
GENERAL INFORMATION:
  • All aluminum 12 gauge heliarc welded construction
  • All modularized design, simple replacement
  • Protected digits with metal surround - protective covers not needed
  • Standard 110-volt AC operation - 12 volt at .75 amp.
OPTIONAL FEATURES:
  • Custom colors
  • Sponsor panels/logos/custom lettering
WARRANTY: 10 year

Return To Top

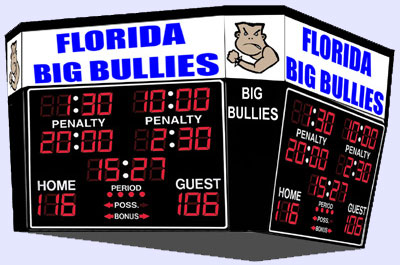

Model #9785-4 Four Sided Hockey Scoreboard


Model #9785-4
  Display Size: Dependent upon the sponsor panels and or message signs chosen
Display Weight: 1350 lbs.

Call 1-800-325-4904 for pricing.

Shown with optional sponsor panels

INCLUDES:
  • Control console with LCD readout
  • 99:59 Penalty time
  • 4 sided scoreboards
  • Up to 7 Penalty times stored and displayed
  • Wall junction box
  • 1/10th second last minute
  • Mounting brackets
  • Horn
  • 0-99 home/guest score keeping
  • 99:59.9 up/ down timing
  • Period indicator
  • Warranty
Intermission mode- up to seven penalty times stored and automatically displayed.

Customer specifies cable lengths between scoreboard, junction box and control console (2 conductor cables).
SCOREBOARD FEATURES:
  • Microprocessor control
  • Quartz crystal solid-state timing
  • 1/10 second timing last minute on scoreboard
  • LED advanced technology - lamp display not required
  • Brilliant red 12" digits
  • Visibility up to 600 feet
  • 200,000 hour multi LED per segment
  • Automatic and manual LOUD horn
CONTROL CONSOLE FEATURES:
  • Stainless steel console
  • Audible beep console entry
  • LCD display prompts user entry on console
  • LCD display shows time 99:59.9, score and shot clock time
  • 110-volt AC power not required at console
GENERAL INFORMATION:
  • All aluminum 12 gauge heliarc welded construction
  • All modularized design, simple replacement
  • Protected digits with metal surround - protective covers not needed
  • Standard 110-volt AC operation - 12 volt at .75 amp.
OPTIONAL FEATURES:
  • Custom colors
  • Sponsor panels/logos/custom lettering
  • Goal lights
  • 220v AC power
WARRANTY: 10 year





Return To Top

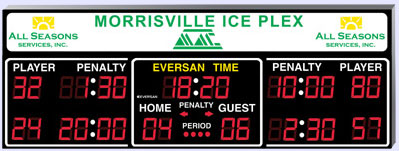

Model #9785 Scoreboard With Player Penalty Panels



Model #9785
  Display Size: 19.5' x 4' x 3"
Display Weight: 200 lbs.

Call 1-800-325-4904 for pricing.

Shown with optional sponsor panels


INCLUDES:
  • Control console with LCD readout
  • Period indicator
  • Two player penalty panels
  • Penalty indicator
  • Wall junction box
  • 1/10th second last minute
  • Mounting brackets horn
  • 0-99 home/guest score keeping
  • 99:59.9 up/ down timing
  • 0-99 home/guest player number
  • Warranty
Intermission mode- up to seven penalty times stored and automatically displayed.

Customer specifies cable lengths between scoreboard, junction box and control console(2 conductor cables).
SCOREBOARD FEATURES:
  • Microprocessor control
  • Quartz crystal solid-state timing
  • 1/10 second timing last minute on scoreboard
  • LED advanced technology - lamp display not required
  • Brilliant red 12" digits
  • Visibility up to 600 feet
  • 200,000 hour multi LED per segment
  • Automatic and manual LOUD horn
CONTROL CONSOLE FEATURES:
  • Stainless steel console
  • Audible beep console entry
  • LCD display prompts user entry on console
  • LCD display shows time 99:59.9, score and shot clock time
  • 110-volt AC power not required at console
GENERAL INFORMATION:
  • All aluminum 12 gauge heliarc welded construction
  • All modularized design, simple replacement
  • Protected digits with metal surround - protective covers not needed
  • Standard 110-volt AC operation - 12 volt at .75 amp.
OPTIONAL FEATURES:
  • Custom colors
  • Sponsor panels/logos/custom lettering
  • Goal lights
WARRANTY: 10 year

Return To Top




Model #9750 Advanced Technology Scoreboard


Model #9750
  Display Size: 6'6" x 4' x 3"
Weight: 67 lbs.

Call 1-800-325-4904 for pricing.

INCLUDES:
  • Control console with LCD readout
  • 0-199 home guest score keeping
  • 99:59.9 up/down timing
  • Bonus indicator
  • Period indicator
  • Warranty
  • 12" LED digits
  • Horn
  • 1/10th second last minute
  • Possession indicator
  • Wall junction box
  • Mounting brackets
Customer specifies cable lengths between scoreboard and junction box and control console

SCOREBOARD FEATURES:
  • Microprocessor control
  • Quartz crystal solid-state timing
  • 1/10 second timing last minute on scoreboard
  • LED advanced technology
  • Brilliant red 12" digits
  • Visibility up to 600 feet
  • Automatic and manual LOUD horn
CONTROL CONSOLE FEATURES:
  • Stainless steel console for durability
  • Audible beep console entry
  • LCD display prompts user entry on console
  • LCD display shows time 99:59.9, score and shot clock time
  • 110-volt power not required at console
GENERAL INFORMATION:
  • All aluminum 12 gauge heliarc welded construction
  • Standard color Black, custom colors available
  • All modularized design, simple replacement
  • Protected digits with metal surround - protective covers not required
  • Standard 110-volt AC operation
  • Network capabilities for additional scoreboards and shot clocks
OPTIONS:
  • Sponsor panels/ logos/ custom lettering
WARRANTY: 10 years

Return To Top
